Ningbo Shuangsheng Plastic Machinery Co.,Ltd
|
small 320KN injection molding machine export to Argentina
| Price: | 1.0 USD |
| Payment Terms: | T/T,L/C |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
1.Leading injection machine supplier
2.Small plastic parts making machine
3.Plastic machine for export, English language
4.Export to South America

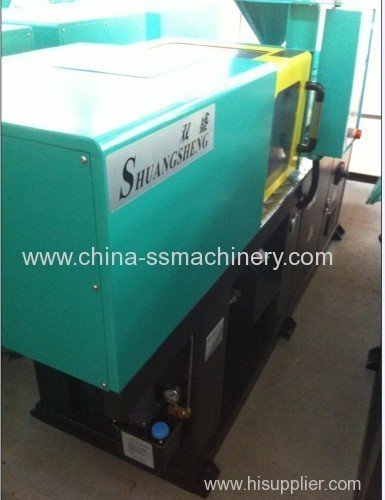

Small 320KN injection moulding machine export to Argentina
We are a small plastic injection molding machine manufacturer of which clamp force ranges from 32T to 168T.
Our 32T small injection molding machine are widely used to produce small plastic gears, small plastic toys,color chips,bars for tensile and hardness testing to check the raw material features.
The machines are exported to Argentina, Brazil,Denmark,Poland,Turkey,Indonesia,Iran,USA and many other countries, we can make machines per your request.
Main parameters of 32T plastic injection molding machine are as below;
| Items | Parameter | Unit | Parameter Value (SSF320-K5) | |
| Injection Unit | Screw diameter | mm | A | B |
| 22 | 25 | |||
| Screw L/D ratio | L/D | 17.7 | 15.5 | |
| shot volumn (theoretical) | Cm3 | 30 | 38 | |
| injection weight(PS) | g | 27 | 34 | |
| plasticizing capacity | g/s | 2.6 | 3.3 | |
| injection rate | g/s | 25 | 32 | |
| injection pressure | Mpa | 185 | 143 | |
| screw speed | rmp | 165 | ||
| Clamping unit | clamp force | KN | 320 | |
| open stroke | mm | 155 | ||
| space between bars (W*H) | mm | 245*195 | ||
| max mould height | mm | 260 | ||
| min mould height | mm | 80 | ||
| ejector stroke | mm | 40 | ||
| ejector force | KN | 13 | ||
| ejector number | PC | 1 | ||
| mould align diameter | mm | 55 | ||
| Others | max pump pressure | Mpa | 14 | |
| pump motor power | KW | 3 | ||
| heating power | KW | 2.5 | ||
| machine dimension | m | 2.80*0.86*1.35 | ||
| machine weight | T | 1 | ||
| oil tank capacity | L | 85 | ||
Products manufactured by SSF320-K5 plastic injection molding machines;
Plastic gears;
Color chips;
Yuken valves applied,hydraulic safety stand;
Mechanical lubrication automatically;
Backside of small injection molding machine
