Energy saving small plastic moulding machinery from China manufacturer - Ningbo Shuangsheng Plastic Machinery Co.,Ltd

Energy saving small plastic moulding machinery

Price:	1.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SSF380-S

Production Capacity: 30sets/month

Delivery Date: 30 days

Power: 50HZ

clamp force: 380kn

Min-max mould height: 80~270

Means of Transport: Ocean

Packing: nylon plastic bag in contai...

Brand Name: Shuangsheng

injection weight: 44g

space between tie bars: 240*240

Screw and barrel: Bi-metallic screw and barre...

1.Small plastic injection molding machine
2. Energy saving
3. Main parts are machined by ourselves
4. Good aftersale service
5. 30days lead time

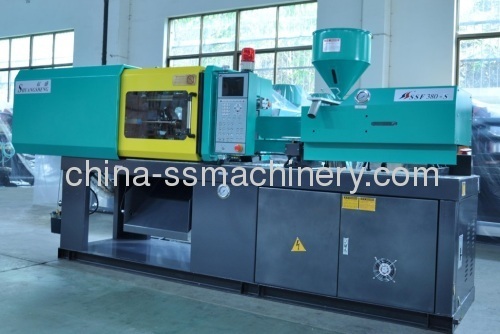

Small servo motor 38T plastic injection molding machine;
Plastic machinery warranty;
Machines that used within 12 months(Based on the date machine leaves our company) will be warranted as below;
1.Warranty of mechanical components(except screw and barrel) is 12 months;
2.Warranty of electrical appliances and hydraulic units(except heating ring) is 6 months;
3.Warranty of screw, barrel and heating ring is 3 months;
4. Above warranty is not applicable for the errors that due imporper operation.

Parameters of small 38T injection moulding machine as below;

Screw diameter	mm	A	B
Screw diameter	mm	27	30
Screw L/D ratio	L/D	18.4	16.5
shot volumn (theoretical)	Cm³	48	58
injection weight(PS)	g	44	53
plasticizing capacity	g/s	4.3	5.9
injection rate	g/s	35	43
injection pressure	Mpa	187	151
screw speed	rmp	170
clamp force	KN	380
open stroke	mm	235
distance between tie bars (W*H)	mm	240*240
max mould thickness	mm	270
min mould thickness	mm	80
ejector stroke	mm	60
ejector force	KN	17.5
ejector number	PC	1
dia of mould location hole	mm	80
max pump pressure	Mpa	14
pump motor power	KW	4
heating power	KW	3.2
machine dimension	m	2.91.01.4
machine weight	T	1.35
oil tank capacity	L	90
