Small color chips making injection molding machine from China manufacturer - Ningbo Shuangsheng Plastic Machinery Co.,Ltd

Small color chips making injection molding machine

Price:	1.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SSF320-K5

Production Capacity: 30 sets/month

Delivery Date: 30 days

Power: 380V,50HZ

clamp force: 320kn

Min-max mould height: 80~260

Means of Transport: Ocean

Packing: Container,carry 4 sets or L...

Brand Name: SS

injection weight: 27g

space between tie bars: 245*195

1.Clamp force 320kn
2.special design for color chips making
3. Injection weight 20 grams
4. Techmation controller
5. 3pcs position sensors

Color chips making injection molding machine for masterbatch supplier
Our company focuses on manufacturing injection molding machines to produce color chips.
Main parameters of the 32T color chips making injection moulding machine as below;

Items	Parameter	Unit	Parameter Value (SSF320)
Injection Unit	Screw diameter	mm	22
	Screw L/D ratio	L/D	17.7
	shot volume(theoretical)	Cm3	30
	injection weight(PS)	g	27
	injection rate	g/s	25
	injection pressure	Mpa	185
	screw speed	rmp	165
Clamping unit	clamp force	KN	320
	open stroke	mm	155
	distance between tie bars (W*H)	mm	245*195
	max mould thickness	mm	260
	min mould thickness	mm	80
	ejector stroke	mm	40
	ejector force	KN	13
	ejector number	PC	1
	dia of mould location hole	mm	55
Others	max pump pressure	Mpa	14
	pump motor power	KW	3
	heating power	KW	2.6
	machine dimension	m	2.800.861.35
	machine weight	T	1.05
	oil tank capacity	L	85

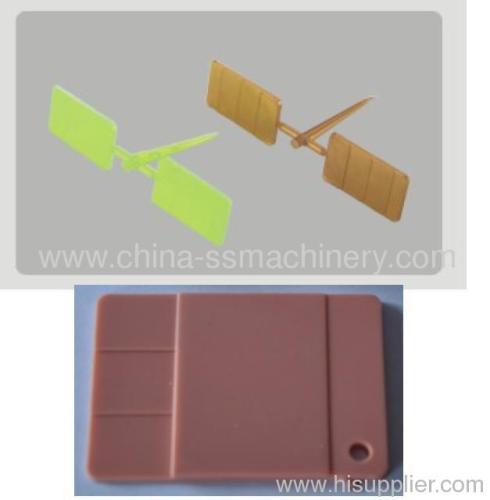

The color chips size manufactured by our small 32T injection molding machine is 45mm*35mm*1.5mm, one mold 4 cavities.

The raw material used to produce color chips including but not limited PET,ABS, PC,PET,TPU,PP,PE,PS.

We have plentiful experience on color test injection molding machine, we will recommend the most suitable machine per your color chips size and mold cavities requirements.

Overview of the color chips making injection molding machine;
