Leading small and precise injection molding machine

Price:	1.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SSF-K5

Production Capacity: 100 sets/month

Delivery Date: 30 days

Power: 380V,50HZ

clamp force: 250~1680kn

controller: techmation or keba

Lead time: 30days

Means of Transport: Ocean

Packing: carried by containers

Brand Name: SS

injection weight: 20~400g

Screw and barrel: Bi-metal or chromated, opti...

Servo motor: Available

1.Small, convenient from precise part production
2. Lead time:30days
3. ISO9001:2008/CE
4. Plastic machine
5. Closed loop small injection machines

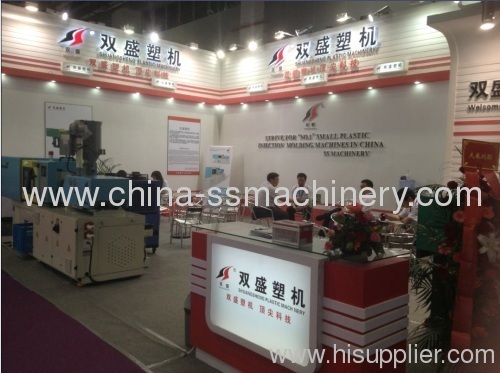

Chinaplas 2013 exhibited small and precise injection molding machine successfully
We shuangsheng Plastic machinery attended Chinplas 2013 held in Canton on May 20th to 23rd, this show made a success for us, we took this time make a face to face with our customers and find several potienal cooperators. We showed 2 machines on site, they were our newly design 25T energy saving plastic injection machine and 50T small injection molding machine with closed loop injection systems, of which are high appraised by customers from home and abroad.

Our robust sales teams;
Chinaplas 2013 exhibited small and precise injection molding machine successfully

Our monthly injection molding machine output is around 90sets.
small and precise injection molding machine successfully exhibited

Parameters of SSF series plastic injection machines
Items	Parameter	Unit	Parameter Value (SSF250)		Parameter Value (SSF380)		Parameter Value (SSF500)		Parameter Value (SSF700)		Parameter Value (SSF900)			Parameter Value (SSF1180)			Parameter Value (SSF1480)			Parameter Value (SSF1680)
Injection Unit	Screw diameter	mm	A	B	A	B	A	B	A	B	A	B	C	A	B	C	A	B	C	A	B	C
			22	25	27	30	28	30	34	36	32	35	38	35	38	42	38	42	45	42	45	50
	Screw L/D ratio	L/D	17.7	15.5	18.4	16.5	19	17.7	18.8	17.7	24.8	22	20	22	20.2	18.4	22.1	20	18.6	23.6	22	19.8
	shot volume(theoretical)	Cm³	30	38	48	58	70	80	113	127	112	134	158	163	192	235	226	277	318	311	357	441
	injection weight(PS)	g	27	34	44	53	64	73	103	115	102	122	144	148	175	213	206	252	289	283	325	402
	injection rate	g/s	25	32	35	43	43	49	86	96	90	107	126	89	105	128	94	115	132	138	160	196
	injection pressure	Mpa	185	143	187	151	224	195	171	153	208	174	148	219	186	152	208	171	149	203	177	143
	screw speed	rmp	165		170		200		180		220			210			185			180
Clamping unit	clamp force	KN	250		380		500		700		900			1180			1480			1680
	open stroke	mm	150		235		250		270		290			350			380			435
	distance between tie bars (W*H)	mm	240*190		240*240		290*270		315*300		360*320			370*370			410*410			460*460
	max mould thickness	mm	220		270		300		320		380			380			450			520
	min mould thickness	mm	80		80		100		150		150			150			160			180
	ejector stroke	mm	40		60		65		80		80			120			120			135
	ejector force	KN	13		17.5		20		27		31			38			50			50
	ejector number	PC	1		1		1		1		5			5			5			5
	dia of mould location hole	mm	55		80		100		100		125			125			125			125
Others	max pump pressure	Mpa	14		14		16		16		16			16			16			16
	pump motor power	KW	3		4		5.5		7.5		9			13			13			18.5
	heating power	KW	2.5		3.2		4.7		5.1		6			7.3			9.3			12.3
	machine dimension	m	2.750.861.35		2.91.01.4		3.21.11.6		3.61.21.65		41.271.75			4.31.281.9			4.51.351.9			5.131.452.12
	machine weight	T	1		1.35		1.9		2.2		2.9			3.4			4			6
	oil tank capacity	L	85		90		115		130		150			230			250			300
