small 38T energy savinginjection moulding machine

Price:	1.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SSF380-S

Production Capacity: 30 sets/month

Delivery Date: 30 days

Power: 50HZ,380V

clamp force: 380kn

Min-max mould height: 80~270

Means of Transport: Ocean

Packing: nylon plastic bag in contai...

Brand Name: Shuangsheng

injection weight: 44g

space between tie bars: 240*240

Screw and barrel: Bi-metallic screw and barre...

1.Small and precise
2. Energy saving
3. Good selection to be used on lab
4. Clamp force 380kn
5. Competitive price

Servo motor small and precise injection moulding machine
38T plastic injection machine parameters as below;

Parameter	Unit	Parameter Value (SSF380)
Screw diameter	mm	A	B
Screw diameter	mm	27	30
Screw L/D ratio	L/D	18.4	16.5
shot volumn (theoretical)	Cm³	48	58
injection weight(PS)	g	44	53
plasticizing capacity	g/s	4.3	5.9
injection rate	g/s	35	43
injection pressure	Mpa	187	151
screw speed	rmp	170
clamp force	KN	380
open stroke	mm	235
distance between tie bars (W*H)	mm	240*240
max mould thickness	mm	270
min mould thickness	mm	80
ejector stroke	mm	60
ejector force	KN	17.5
ejector number	PC	1
dia of mould location hole	mm	80
max pump pressure	Mpa	14
pump motor power	KW	4
heating power	KW	3.2
machine dimension	m	2.91.01.4
machine weight	T	1.35
oil tank capacity	L	90

Open-type PLC interface technical edition & on-line amendment.
USB connection, copy, edition and amend procedure easily.
I/O automatically detect & use of ASIC to simplify circuit to ensure the reliability of PID closed-loop type of barrel heating & temperature deviation of the precise control of self-tuning.
Multilanguage selection with colorful screen,
The data stored without the requirement of battery, no need to worry lost datas

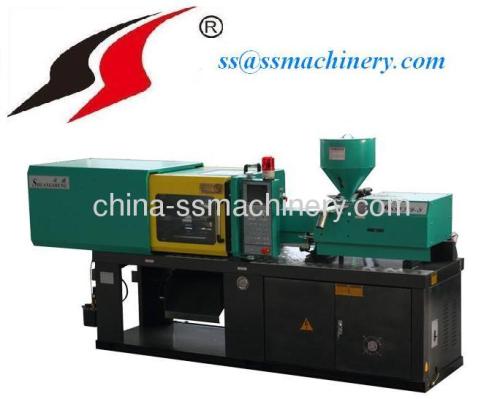

Servo motor small and precise injection moulding machine
